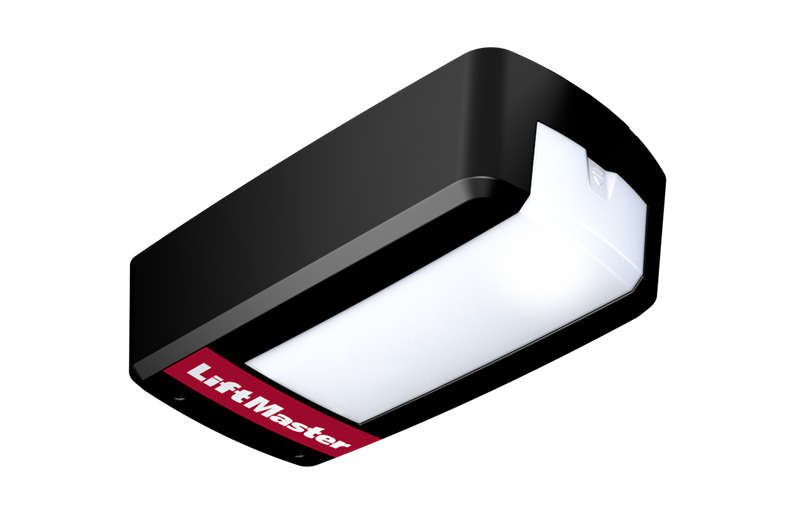

Liftmaster - LM55EVF

Evolution

Garage door opener

LM55EVF

The entry-level garage door opener for small doors, LM55EVF

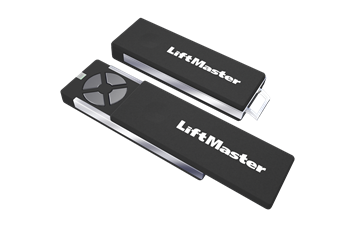

Super-quiet garage door opener including two multi-frequency transmitters and a modern, powerful LED lighting system. For doors with door weights up to 90 kg

Find your dealer

Strength in silence

The quiet operation of our garage door openers is unparalleled.
Up to 3 years motor warranty

The long-time warranty demonstrates that LiftMaster provides premium quality products
Economic and environmentally friendly

The extremely low standby energy consumption is good for the environment and your pocket.
Long-lasting LEDs

Immediate brightness, low CO2 emissions and avoidance of heavy metals and mercury in manufacturing.
Quickly installed

Simple installation with standard tools.

Voltage IN	230-240 V, 50/60 Hz
Motor voltage	24V DC
Max pull force	600 N
Stand-by power	0,8 W
Drive type	Belt
Gate height	Adjustable up to 2,25 m
Speed	100 mm per second
Lighting	LED turns on with activation, turns off 2.5 minutes after operation
Obstacle detection	Automatic
Force setting	Automatic
Over voltage protection	Transformer overload protection
Operating temperature	-20°C bis +40°C

Limit Switch	Electronic
Max door area	—
Max door width	3,5 m
Max door weight	90 kg
Headroom required	min. 35 mm
Weight	10 Kg
Memory registers	40
Radio	433 MHz + 868 MHz
Further features	Soft-Start and Soft-Stop
MyQ smartphone combatible	—
Safety class	TÜV-tested to meet EN12453. For doors up to 90 kg
Electric motor warranty	3 Years*
