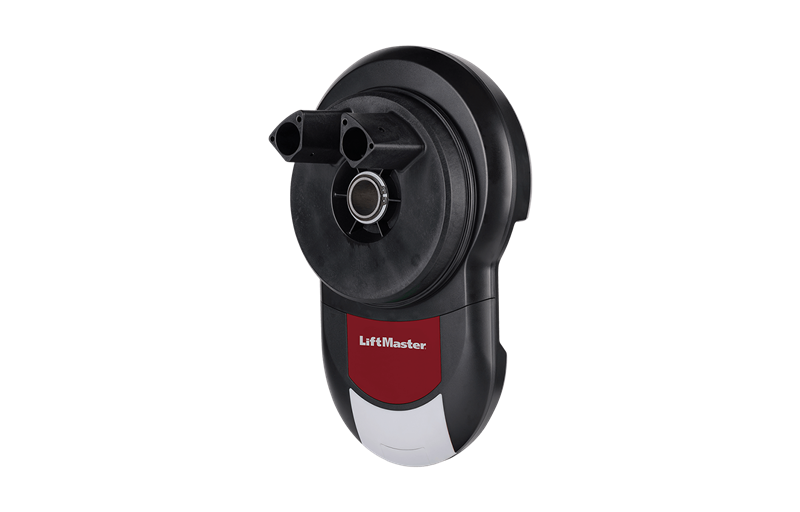

LM750EVGB-1

Garage door opener

LM750EVGB-1

The best solution for your rolling doors

Fast, silent & powerful DC motor with soft start and soft stop. Self-locking gear system when garage door is closed.

  • Stay connected with myQ

    Stay connected with myQ

    With myQ, you can monitor and control your garage door, using your smartphone, tablet or computer from wherever you happen to be.

  • Smart radio technology

    Smart radio technology

    Evolution operators are equipped with the best reliable radio that is a bi-directional radio. They don't only receive signal, they also sends signals back.

  • Up to 5 years motor warranty

    Up to 5 years motor warranty

    The long-time warranty demonstrates that LiftMaster provides premium quality products

  • Long-lasting LEDs

    Long-lasting LEDs

    Immediate brightness, low CO2 emissions and avoidance of heavy metals and mercury in manufacturing.

  • Quickly installed

    Quickly installed

    Simple installation with standard tools.

Voltage IN 220-240 V, 50/60 Hz, 140W
Motor voltage 24 V DC
Max pull force 550N @ Ø 300 mm
Stand-by power 0,8W
Drive type 24V DC
Gate height max. 4,5 m
Speed
Lighting LED turns on with activation, turns off 3 minutes after operation.
Obstacle detection automatic
Force setting automatic
Over voltage protection thermal overload
Operating temperature 25-55 °C
Limit Switch
Max door area 18m²
Max door width
Max door weight 120 Kg
Headroom required
Weight
Memory registers 64
Radio 433 MHz + 868 MHz
Further features
MyQ smartphone combatible yes (optional 828EV required)
Safety class
Motor warranty 5 years*
