LM80EVF

Currently no longer on sale

Garage door opener

LM80EVF

The powerful, fast garage door opener for most door sizes, LM80EVF

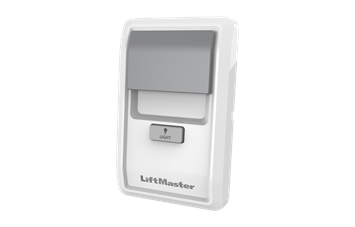

Super-quiet and fast-running garage door opener including two multi-frequency transmitters, wireless radio wall control and a modern, powerful LED lighting system. For doors with door weights up to 130 kg. Compatible with MyQ smart-home technology.

Find your dealer
Voltage IN 230-240 V, 50/60 Hz
Motor voltage 24V DC
Max pull force 800 N
Stand-by power 0,8 W
Drive type —
Gate height Adjustable up to 2.25 m or up to 4 m with appropriate extension
Speed 200 mm per second
Lighting LED turns on with activation, turns off 2.5 minutes after operation
Obstacle detection Automatic
Force setting Automatic
Over voltage protection Transformer overload protection
Operating temperature -30°C bis +55°C
Limit Switch Electronic
Max door area —
Max door width 5,5 m
Max door weight 130 Kg
Headroom required min. 35 mm
Weight 12 Kg
Memory registers 180
Radio 433 MHz + 868 MHz
Further features Soft-start and soft-stop, automatic close
MyQ smartphone combatible Yes (optional Internet Gateway 828EV required)
Safety class TÜV-tested to meet EN12453. For doors up to 130 kg
Electric motor warranty 6 Years*
