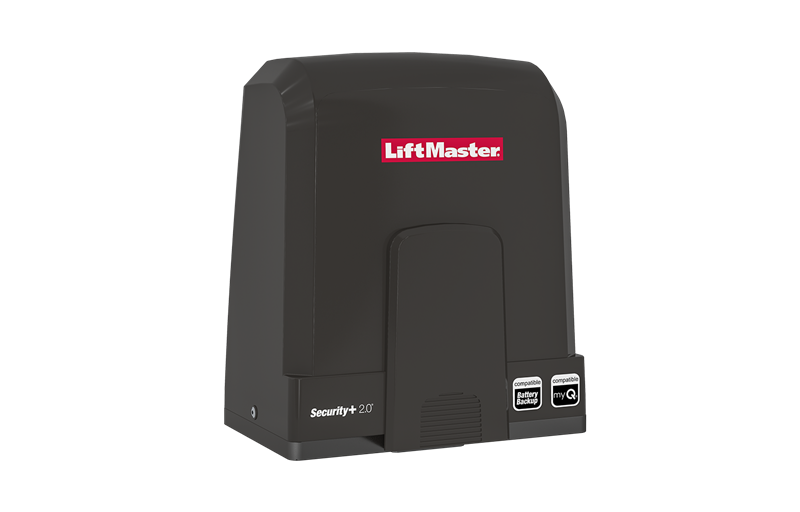

SL400EVK

SL Series

Sliding gate operator

SL400EVK

MODERN DESIGN COMBINED WITH POWERFUL TECHNOLOGY

SLIDING GATE OPERATOR KIT

Maintenance-free operator for sliding gates with wings up to 400 kg and a width of up to 5 m for private use. A powerful motor as well as numerous additional functions combined with the optional myQ smart home technology ensure convenient opening and closing of the wings – at any time and from anywhere.

  • Stay connected with myQ

    Stay connected with myQ

    With myQ, you can monitor and control your garage door, using your smartphone, tablet or computer from wherever you happen to be.

  • Smart radio technology

    Smart radio technology

    Evolution operators are equipped with the best reliable radio that is a bi-directional radio. They don't only receive signal, they also sends signals back.

  • Strong and resistance design

    Strong and resistance design

    "LiftMaster products are extremely strong, robust and resistant - and in quality design. "

  • Practical and modern

    Practical and modern

    "The 24 V products can used intensively and are silent "

  • Clean and maintenance free product

    Clean and maintenance free product

    All electro-mechanical operators are maintenance free.

  • Irreversible

    Irreversible

    The gate is securely closed. No need to use an additional E-lock.

Voltage IN 220-240 V, 50/60 Hz
Motor voltage 24V DC
Current
Power 110 W
Max pull force
Torque 12 Nm
Speed 240 mm/s
Time to open 90°
Switch on time ED 100 %
Max cycle day 25
Operating temperature -20°C bis +55°C
Safety class Safety class I
Degree of protection IP44
Weight 11.1 kg (Kit)
Max. wing length / weight 5 m - 400 Kg
